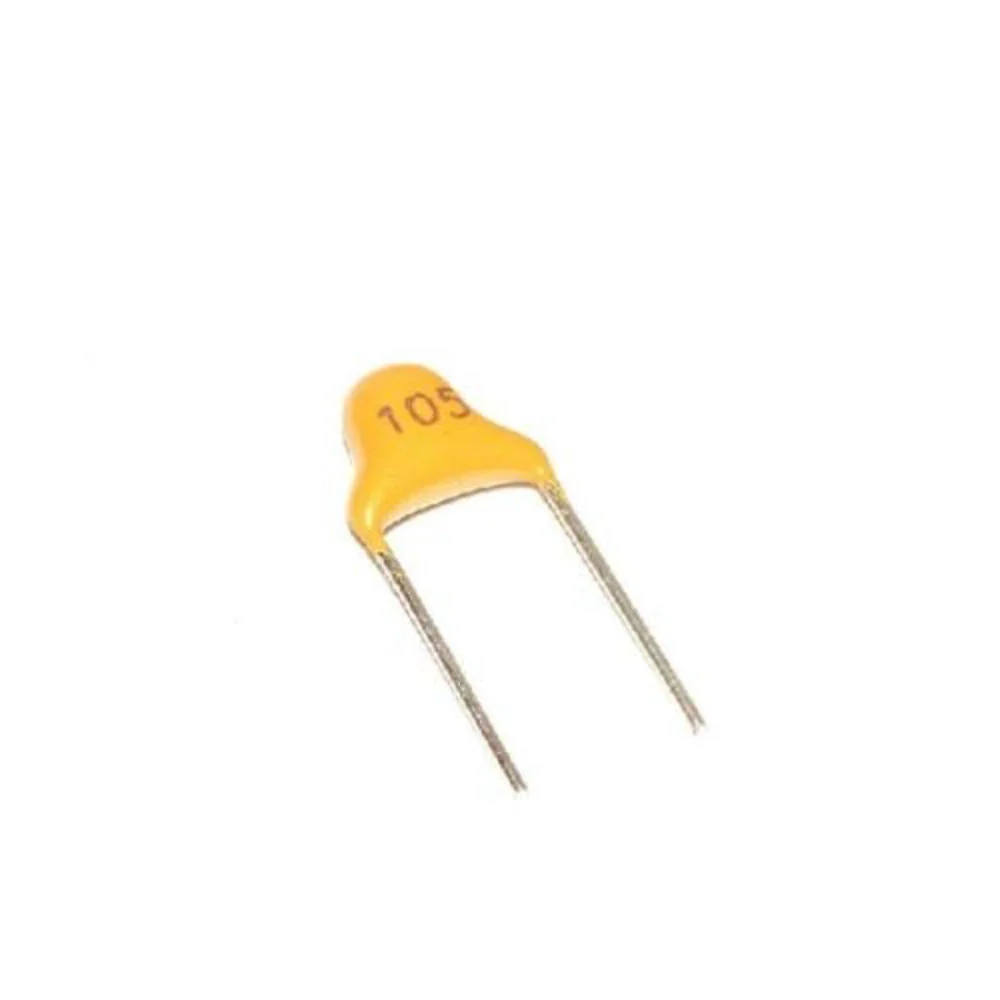

Description
Capacitance: 1 microfarad (1µF)
Voltage Rating: 50 volts (V)
Dielectric Material: Ceramic, typically Class II dielectric materials like X7R or Y5V, known for their temperature stability and performance.
Tolerance: Commonly available in tolerances of ±10%, ±20%.
Temperature Coefficient: The capacitance can vary with temperature changes, but ceramics like X7R offer relatively stable performance over a wide temperature range.
Form Factor: Small size due to the high dielectric constant of ceramic materials, making it suitable for densely packed electronic circuits.
ESR (Equivalent Series Resistance): Generally low, providing efficient performance in high-frequency applications.
ESL (Equivalent Series Inductance): Low, making them suitable for high-speed switching circuits.
Applications:
Decoupling and Bypass Capacitors: Used to filter out noise and provide a stable power supply by smoothing out voltage fluctuations in power lines.
Coupling Capacitors: Used in signal processing to block DC components while allowing AC signals to pass through.
Timing Circuits: Utilized in RC (resistor-capacitor) timing circuits to control time constants in oscillators and delay circuits.
Technical Details
- Termination Style: Axial
- Minimum Operating Temperature: -55 °C
- Mounting Style: PCB Mount
- Tolerance Rating: ±20 %
- Capacitor Value: 1uf
- Type: Ceramic Capacitors
- Voltage: 50V
- Pitch: 5.08mm
- Maximum Operating Temperature: 125 °C
