Description

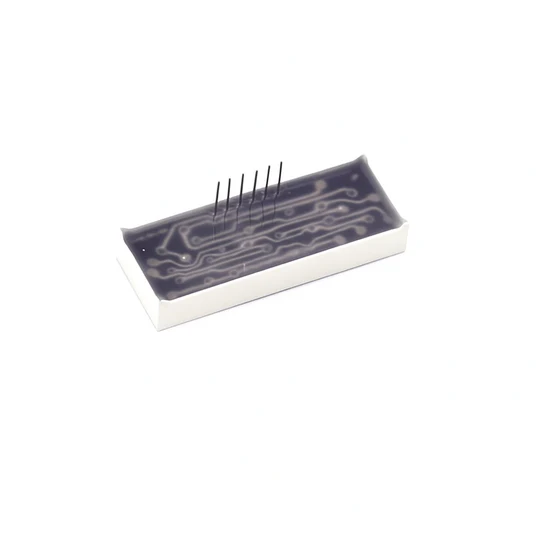

Built for reliability and low power consumption, it’s ideal for timers, counters, clocks, and measurement panels. A standardized pin layout simplifies wiring and PCB design, while the durable package suits compact enclosures.
Technical Details
- Display Type: 4-Digit 7-Segment LED
- Configuration: Common Anode
- Digit Height: 0.36 inch (≈9.2 mm)
- Color: Red
- Segments per digit: 7 + decimal point (DP)
- Forward Voltage (per segment): 1.8V – 2.2V (typical)
- Forward Current (per segment): 10mA – 20mA
- Peak Current (per segment): 30mA (max)
- Recommended Drive: Multiplexed (four commons), duty ≈ 1/4
- Operating Voltage: 5V (typical with series resistors/driver IC)
- Operating Temperature: -25°C to +85°C
- Pin Count: 12 (shared segments + 4 commons)
Features
- Space-saving 0.36″ digits with good readability
- Uniform, bright red LED segments
- Low power consumption and long service life
- Easy MCU/driver interfacing (multiplexed)
- Ideal for clocks, counters, timers, and panel meters
Applications
- Electronic instruments requiring 4-digit numeric display
- Digital clocks, counters, and measurement panels
- Voltage/current meters and compact embedded UIs
- General purpose DIY and educational electronics
