Specifications:

• Working Voltage: 4.5V~6.0V DC
• TTL Working Voltage: 3.3V (compatible with 5.0V)

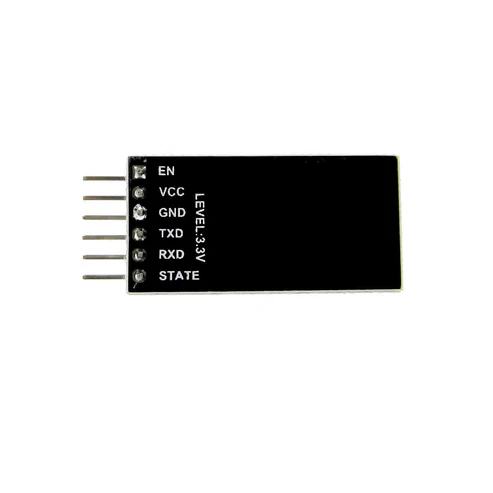

• Provided Pins: STATE, TXD, RXD, EN
• Average Current: 80mA, when data sent, it is 170mA; but it is 20μA at deep sleep mode
• Support Baud Rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/230400/460800/921600/1843200/3686400
• Working Temperature: -40℃-125℃

Features:

• Fully compatible with the original electrical interface and physical interface for the serial transparent Bluetooth;
• Built-in industrial transparent transmission firmware V3.0 with stability and reliability by using the Web Configuration;
• Built-in high-performance WiFi module ESP-M2
• DT-06 Wireless Transmission Module supports serial AT command
• DT-06 Wireless Transmission Module supports re-programmable, OTA firmware update
• Seamless transparent transmission between serial and WiFi
• Built-in HTTP Web Server, supports configuring parameters by the web page
• DT-06 Wireless Transmission Module supports re-connect automatically at WiFi STA mode and TCP Client
• Support set baud rate, data bit, parity check, stop bits, and/or subcontracting time
• Support AP enable, self-defined SSID / password, self-defined IP and network duration
• Automatically scan the peripheral WiFi hotspot, support STA enable, DHCP, self-defined IP
• DT-06 Wireless Transmission Module supports TCP Server, TCP Client, UDP Server, UDP Client and UDP local broadcast
• Support DNS resolution automatically for the remote server address
• DT-06 Wireless Transmission Module supports checking the status by AT command
• Provide IO4 to show the WiFi status

Usage of Web Configuration:

DT-06 Wireless Transmission Module is already built in the HTTP Server. Thus, it can configure the parameters by the browsers on PCs mobile phones or other smart devices, without of need for any other tools or Apps. In the factory settings, the module works in AP mode, and the signal is ‘Doit_WiFi_xxxxxx’, where, ‘xxxxxx’ is the last 6 numbers of the MAC address of this module. Then, one can connect this WiFi hotspot to PCs or phones, and other smart devices (supportable Android and iOS, Windows) with no password.
