Description

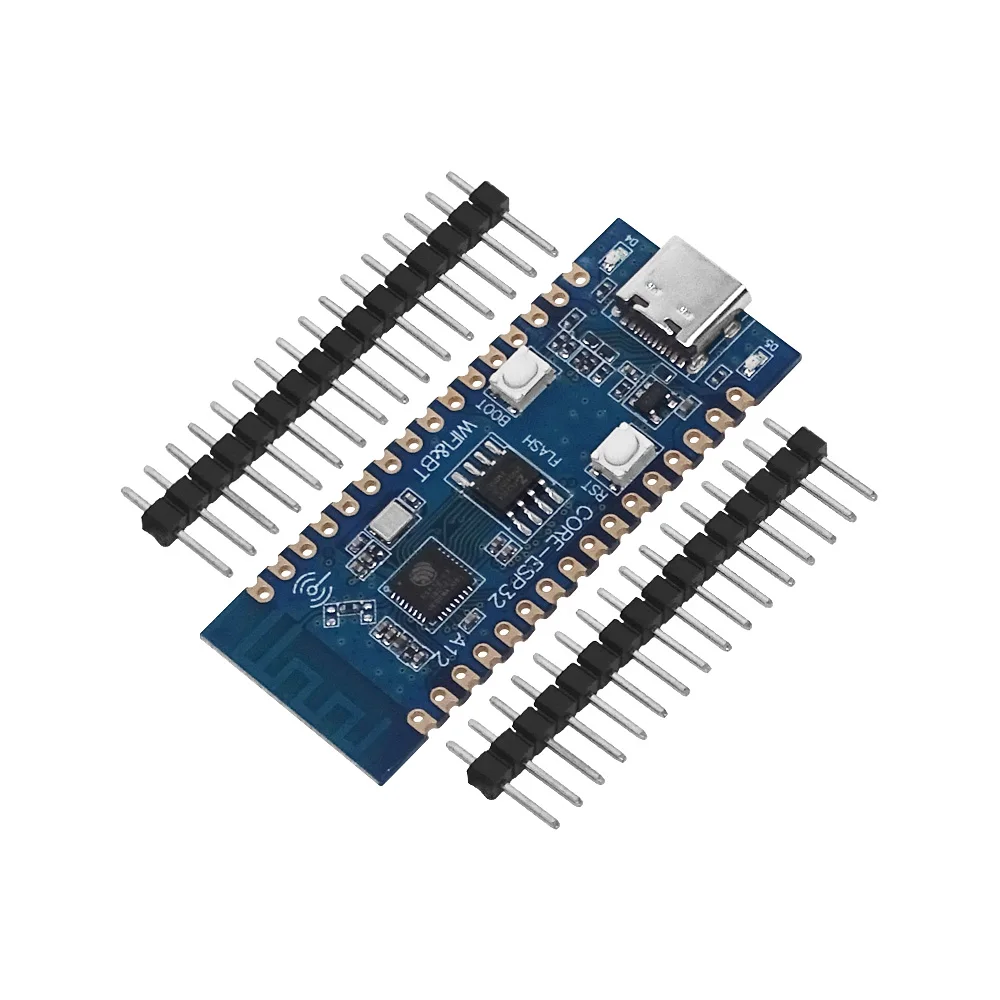

ESP32-C3 Development Board 4MB flash Wireless Module WiFi Bluetooth

ESP32-C3 is a development board for IoT applications. Base on esp32-C3, which is open-source RISC-V architecture. The development board can act as a WIFI node easily, at the same time it can use Bluetooth to communicate. OLED displays have some advantages of being lightweight and working well under low-temperature environment, and it also saves energy, which can work for a long-time.

Features

• Integrated ESP32-C3 with 2.4 GHz Wi­Fi and Bluetooth5 (LE)
• Ultra­Low­Power SoC with RISC­V Single­Core CPU
• Wi-Fi Protocols: 802.11b/g/n(802.11n up to 150Mbps),A-MPDU and A-MSDU aggregation and 0.4us guard interval support
• Bluetooth Have High power mode(18dBm) and different speed to choose(125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps)
• 3 x SPI, 2 x UART, 1 x 12C, 1 x I2S
• LED PWM controller, with up to 6 channels, Full-speed USB Serial/JTAG controller, General DMA controller (GDMA), with 3 transmit channels and 3 receive channels
• Flash encryption, 4096-bit OTP, up to 1792 bits for use, Cryptographic hardware acceleration: AES-128/256 (FIPS PUB 197)
• 2 x 12-bit SAR ADCs, up to 6 channels, 1 x temperature sensor, 2 x 54-bit general-purpose timers, 3 x watchdog timers, 1 x 52-bit system timer.
• Power supply: 5V, Type-C USB

Applications

•  Cameras for Video Streaming
•  Over-the-top (OTT) Devices
•  USB Devices
•  Speech Recognition
•  Image Recognition
•  Mesh Network
•  Home Automation
• Smart Building
