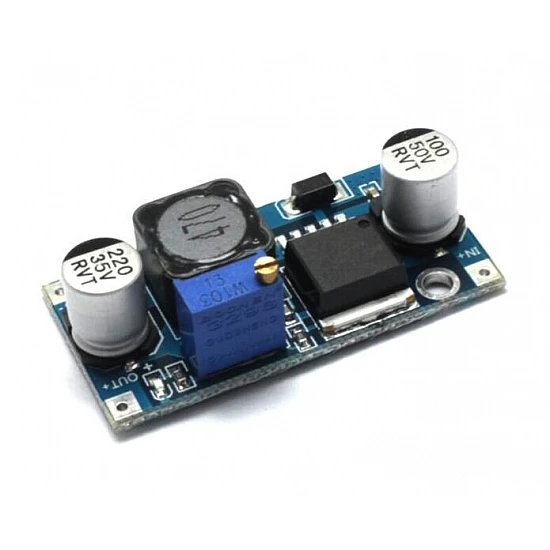

LM2596 DC-DC Adjustable Step Down Buck Converter
Black Friday Sale Price
Expires November 30, 2025 11:59 pm
₵20.00 Original price was: ₵20.00.₵18.00Current price is: ₵18.00.
The LM2596 DC-DC Step Down Buck Converter is a high-efficiency power module designed to convert a higher DC voltage into a stable 5V output. It is widely used in electronic projects, power supply systems, and battery-operated devices.
Technical Details
- Input Voltage: 3V – 40V
- Output Voltage: 5V (Fixed)
- Output Current: Rated 2A, Max 3A (with heatsink)
- Switching Frequency: 150KHz
- Operating Temperature: -40 to +85°C
- Efficiency: Up to 92%
- Load Regulation: ±0.5%
- Voltage Regulation: ±0.5%
- Dynamic Response Speed: 5% @ 200uS
- Dimensions: 43x21x14mm
1 in stock
Description
Technical Details
- Input Voltage: 3V – 40V
- Output Voltage: 5V (Fixed)
- Output Current: Rated 2A, Max 3A (with heatsink)
- Switching Frequency: 150KHz
- Operating Temperature: -40 to +85°C
- Efficiency: Up to 92%
- Load Regulation: ±0.5%
- Voltage Regulation: ±0.5%
- Dynamic Response Speed: 5% @ 200uS
- Dimensions: 43x21x14mm
Features
- Input Voltage: 3-40V
- Adjustable Output Voltage: 5V (Fixed)
- Output Current: Rated 2A, Max 3A (with heatsink)
- Non-Isolated Constant Voltage Module
- Non-Synchronous Rectification
- Short Circuit Protection: Current Limiting, Auto Recovery
Applications :
- Embedded Systems: Powers microcontrollers like Arduino, Raspberry Pi, and ESP8266.
- IoT Devices: Provides stable 5V power for sensors and wireless modules.
- DIY Electronics: Ideal for custom power supply solutions.
- Battery-Powered Applications: Converts higher voltages to 5V for low-power circuits.
Physical Attributes
- L x W x H (mm) : 43 * 21 * 14
- Weight (gm) : 10
