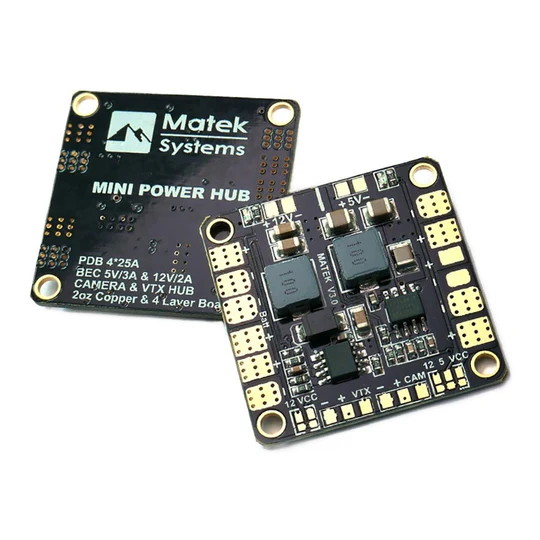

Description
ESC outputs:
– Continuous current: 20A per output
– for peak current (10 seconds/minute): 30A per output
BEC 5V output:
– Designed for RC Receivers, Flight controllers, OSD, and Servos.
– Voltage: 5.0 +/- 0.1VDC
– Continuous current: 3 Amps
– Short-circuit tolerant (10 seconds/minute)
– LED (indicates voltage is in regulation, within 10%)
BEC 12V output:
– The battery should be 4S~6S LiPo
– Standard output designed to power cameras and video transmitters,etc.
– Voltage: 12.0 +/- 0.2VDC
– Continuous current: 2 Amps (Max.3A 10s/minute)
– Short-circuit tolerant (10 seconds/minute)
– LED (indicates voltage is in regulation, within 10%)
CAM & VTX voltage bridge
– 3S operation. choose “VCC” for 12V camera & 12V VTX, VCC=Battery Voltage.
– 4~6S operation, choose “12” for 12V camera & 12V VTX
– 3~6S operation, choose “5” for 5V camera
– Video pass through from the “CAM” pad to the “VTX” pad
Technical Details
- Input voltage range (2S-6S operation): 7.2 – 26VDC
- Regulated 5V and 12V outputs
- LED power indicators ( 5V & 12V outputs )
- 4 ESC outputs
Features
- 2oz copper & 4-layers PCB.
- ESC & Battery solder tabs in pairs.
- Solder Bridges of various voltage for Camera & VTX.
- DC/DC synchronous buck regulator, Efficiency is up to 95%.
- TVS(Transient Voltage Suppressor) protection for DC/DC chip.
- 5V & 12V Output LED indicators & Short circuit tolerant.
Physical Attributes
- L x W (mm): 36 x 36
- Weight (gm) : 6
- Mounting holes 30.5mm square spacing
