Key Features

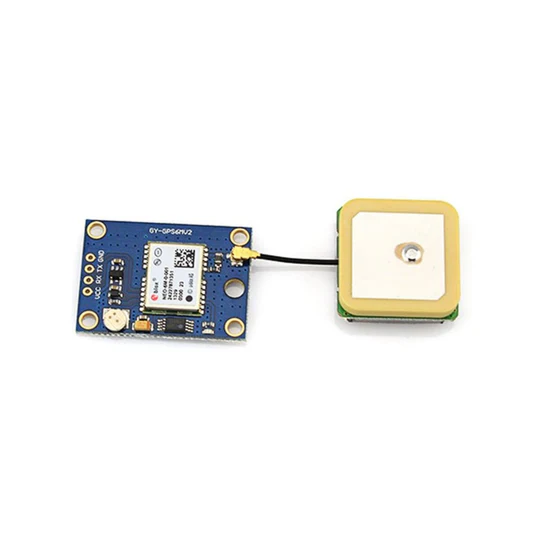

• High-performance u-blox NEO-6M GPS engine

• Built-in ceramic patch antenna for strong satellite reception

• EEPROM memory to save configuration settings

• Rechargeable backup battery for faster GPS lock

• UART TTL serial communication

• Power and signal status indicators

• Supports SBAS (WAAS, EGNOS, MSAS, GAGAN)

• Compact design with 3mm mounting holes

Technical Specifications

• GPS Engine: u-blox NEO-6M (ROM 7.0.3)

• Default Baud Rate: 9600

• Configurable Baud Rate: 4800 – 115200

• Position Update Rate: 5Hz

• Operating Voltage: 3.3V

• Operating Temperature: -40°C to +85°C

• Tracking Sensitivity: -162 dBm

• Cold Start Time: 38 seconds

• Hot Start Time: 1 second

• Interface: UART TTL

• Module Size: 23 × 30 mm

• Antenna Type: Ceramic Patch Antenna

Pin Configuration

• VCC – Power Supply (3.3V)

• GND – Ground

• TX – Transmit Data

• RX – Receive Data
