Description
Technical Details
- 6-36V DC
- 10mm Detection
- M30 Thread
- Model: RM30~3010 NA
- Inductive, NPN NO
- Flush (Shielded)
- 200mA Max
- 0-7mm Setting
- 50MΩ Insulation
- -30 to 80°C
- Ø4.5, 3-Wire, 2m Cable
- 78g Weight
Feature
- IP67 protection (IEC standard)
- Compact size
- High precision
- Diverse design
- Strong anti-interference
- Multiple output options
- High on-off frequency
- Wide voltage range
- Dust, vibration, water & oil proof
- Short-circuit & reverse connection protection
- Long service life
Applications :
- Industrial Automation: Detects metal objects in conveyor systems, assembly lines, and automated machinery.
- Precision Metal Detection: Ideal for sensing small ferrous and non-ferrous metal objects in manufacturing processes.
- Robotics: Enables accurate positioning and motion control in robotic arms and automated systems.
- CNC Machines: Identifies metal tools and workpieces in milling, lathe, and grinding machines.
- Automotive Manufacturing: Used in vehicle assembly lines for detecting parts and ensuring correct alignment.
- Security & Access Control: Integrated into automated gates, doors, and security systems for non-contact sensing.
- Smart Warehousing: Assists in inventory management by detecting metallic storage bins and automated equipment.
- Medical & Laboratory Equipment: Utilized in specialized applications for detecting metal components in precision instruments.
Physical Attributes
- Cable Dimensions : Ø4, 3-Wire, 2 Meter
- Weight (gm): 78
Package Includes

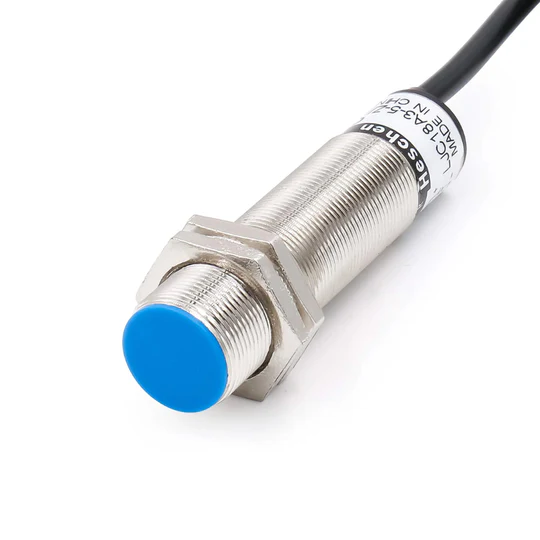

- 1 x 10mm NPN Inductive Proximity Sensor M18 DC6~36V (unshielded) (Normally Open)
