  2. USB Logic Analyzer 24MHz 8 Channel 24M/seconds Logic Analyzer Debugger For ARM FPGA Logic Analyzer Logic 24M 8CH

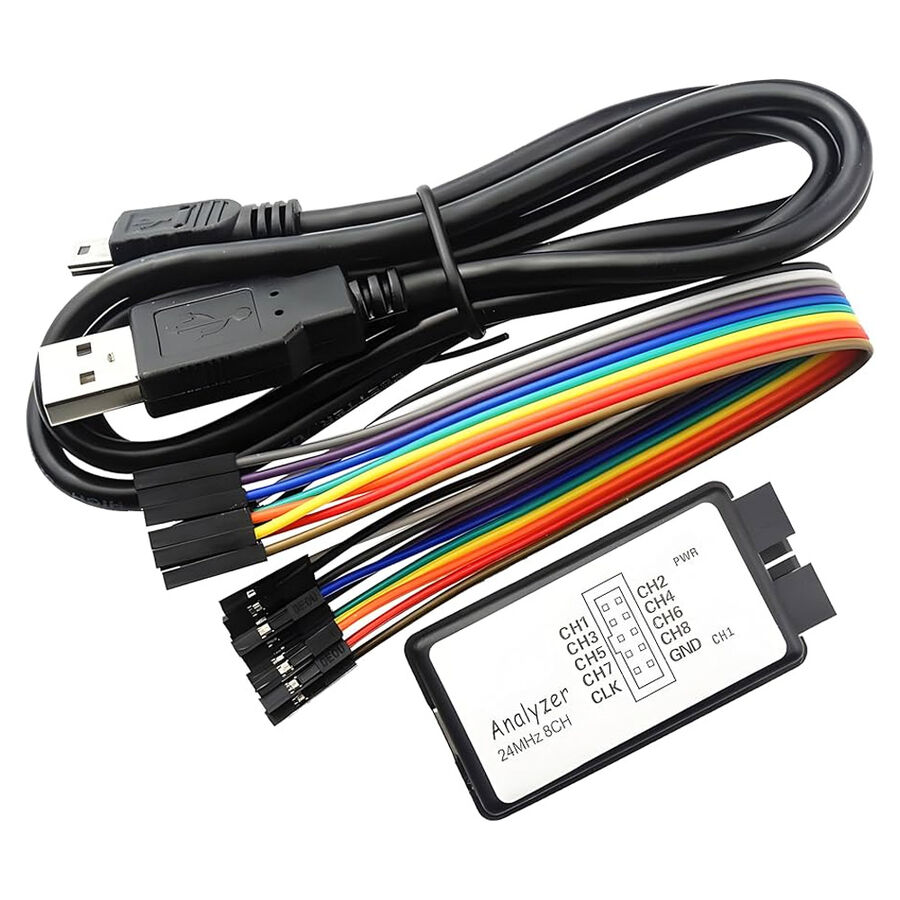

USB Logic Analyzer 24MHz 8 Channel 24M/seconds Logic Analyzer Debugger For ARM FPGA Logic Analyzer Logic 24M 8CH

USB Logic Analyzer - 24MHz/8-Channel
USB Logic Analyzer 24MHz 8 Channel 24M/seconds Logic Analyzer Debugger For ARM FPGA Logic Analyzer Logic 24M 8CH - Image 2

USB Logic Analyzer 24MHz 8 Channel 24M/seconds Logic Analyzer Debugger For ARM FPGA Logic Analyzer Logic 24M 8CH

₵190.00

Is your I2C bus not ACK’ing the way you expect? Do you need to discover a UART’s mysterious baud rate? Or do you want to reverse engineer an SPI protocol? These all sound like jobs for a logic analyzer! With the growing ubiquity of UART, I2C, and SPI sensors, logic analyzers are becoming a tool everyone needs in their toolbox or on their workbench. This 8-channel USB Logic Analyzer with support for sampling rates of up to 24MHz provides a good while economic option making it a great tool for quickly diagnosing most communication issues we encounter.

2 in stock

SKU: 567777 Category: Brand: ,

Description

These analyzers will work with both 3.3V and 5V systems (up to 5.25V max and 2.0V minimum on a high logic-level) and is powered via an included USB-C cable. This logic analyzer works with PulseView — an open-source, cross-platform signal analysis software suite.

The analyzer ships with Female-To-Female jumper wires. If you’re using an Uno or board with female headers we recommend picking up a handful of Male-To-Male jumpers to connect the analyzer to the female headers.

Features & Specs



  • 8-channels
  •  Sampling rate up to 24MHz, configurable down to 20kHz
  •  5.25V maximum voltage input
    • 2.0V minimum logic-high
    • 0.8V maximum logic-low
  • Input impedance > 100kΩ, 5pF
  • USB power supply
  •  USB Type C Connector
  •  Supports open-source sigrok logic analyzer software
  •  Cross-platform support: Windows, Mac OS X, Linux, Android, etc.

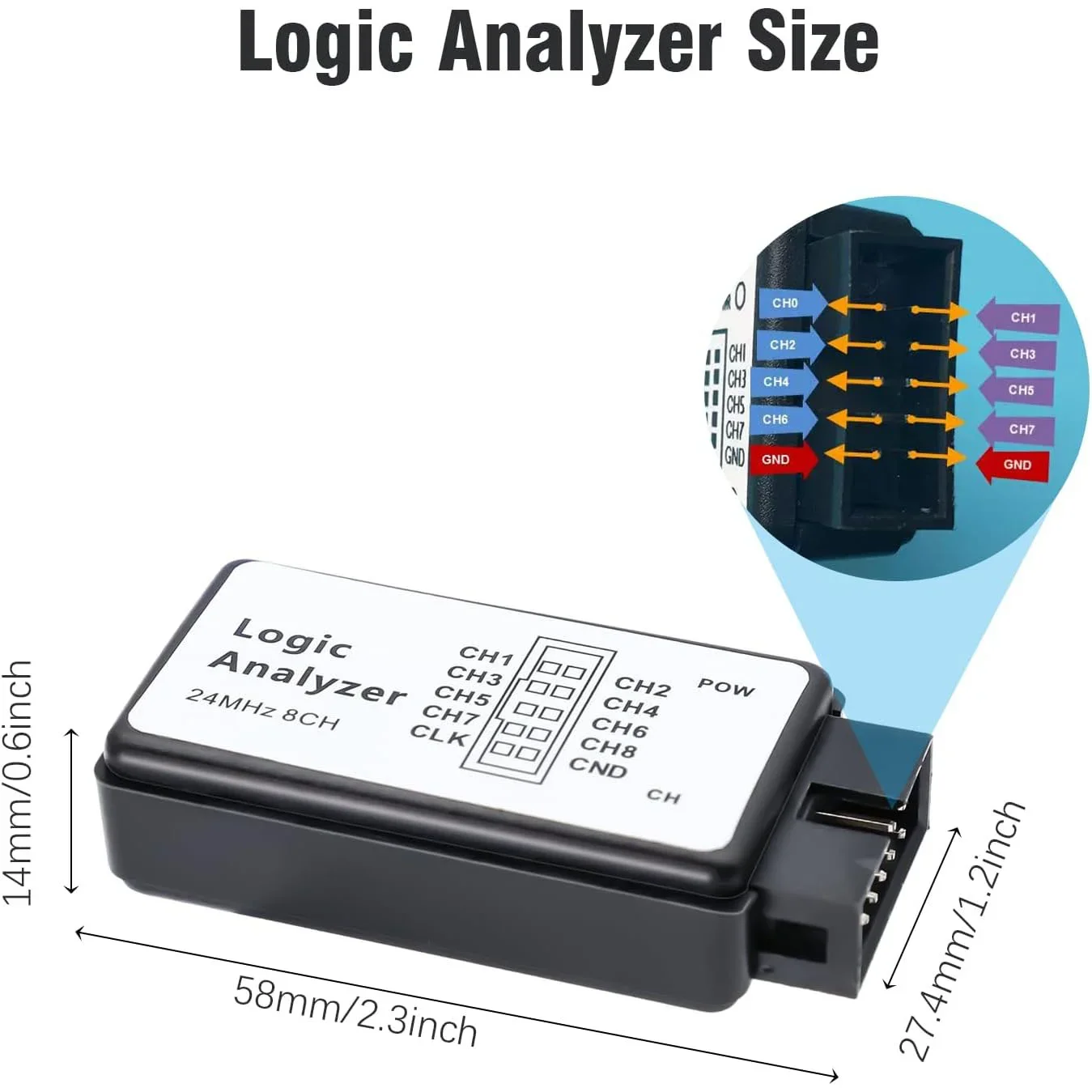

  •  Dimensions: 54.7 x 27.4 x 14.1 mm
