Description

Key Features at a Glance

• 2-in-1 Functionality: 100MHz Oscilloscope + 25MHz Arbitrary Waveform Generator

• Deep Memory: 8 Mpts memory depth for detailed signal analysis

• Protocol Decoding: Supports I2C, SPI, UART/RS232, and CAN buses

• Silent Operation: Fanless design for zero noise

• Large Display: 7-inch (800×480) high-resolution screen

• High Sample Rate: 1 GSa/s real-time sample rate

Oscilloscope Specifications

• Bandwidth: 100 MHz

• Channels: 2

• Real-Time Sample Rate: 1 GSa/s (1 channel), 500 MSa/s (2 channels)

• Memory Depth: 8 Mpts (1 channel), 4 Mpts (2 channels)

• Vertical Resolution: 8 bits

• Rise Time: 3.5 ns

• Horizontal Scale: 2 ns/div – 100 s/div

• Vertical Sensitivity: 2 mV/div – 10V/div

• Max Input Voltage: 300 VRMS, CAT II

• Decoding (Trigger & Decode): I2C, SPI, UART/RS232, CAN

• Math Operations: +, -, ×, ÷, FFT

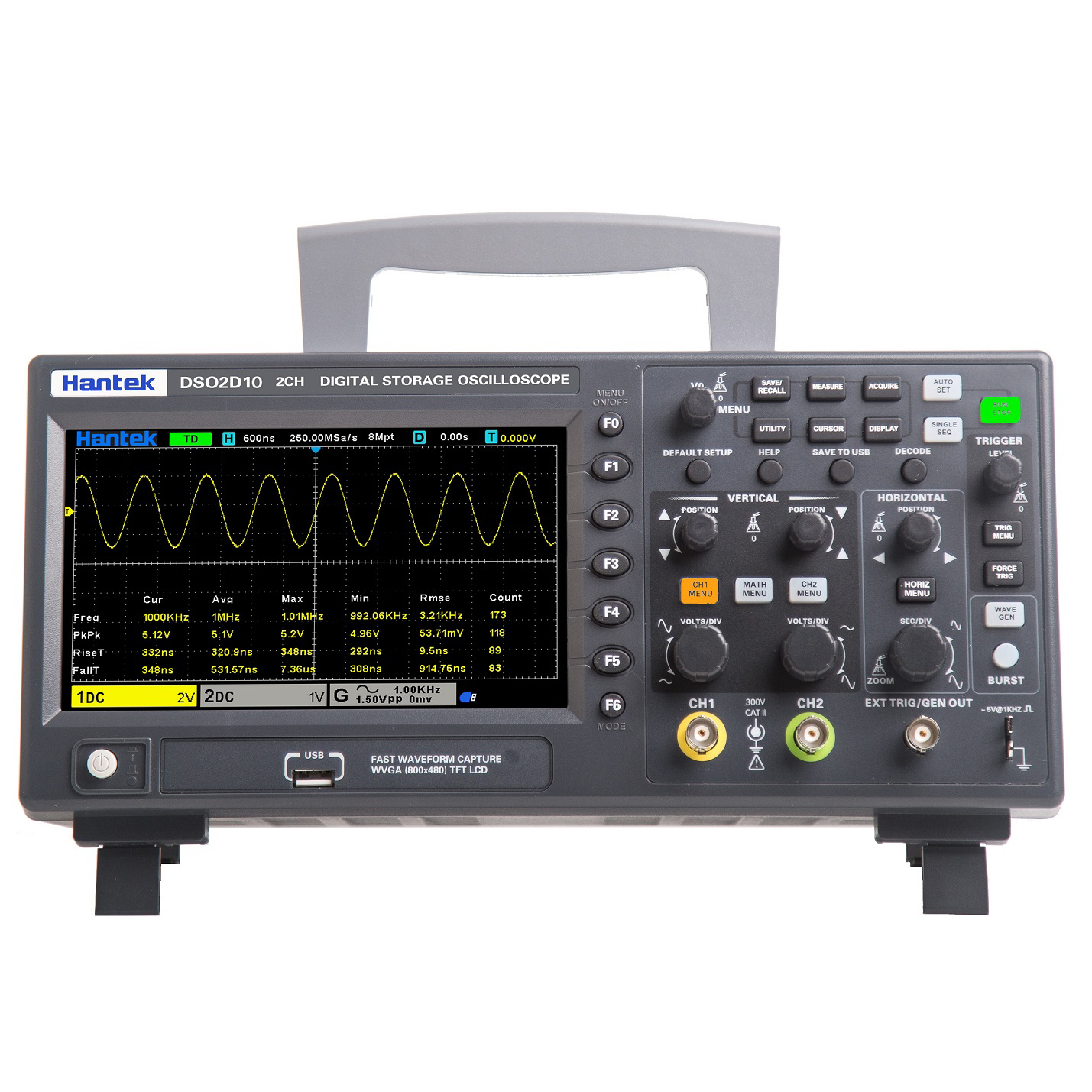

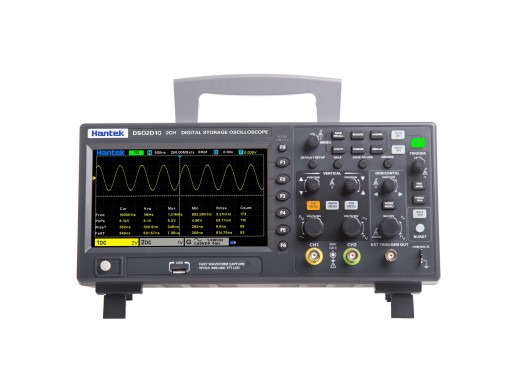

Why Choose the Hantek DSO2D10?

This oscilloscope stands out in its class due to its fanless design, ensuring no distracting noise in quiet lab environments. The inclusion of protocol decoding (I2C, SPI, UART, CAN) is a premium feature rarely found at this price point, making it ideal for embedded systems work. With a generous 8 Mpts memory depth, you can capture and analyze long signal sequences with high resolution.

What’s Included in the Box

• 1x Hantek DSO2D10 Oscilloscope

• 1x Passive Probe

• 2x BNC to Alligator Clip Cable

• 1x USB Cable (for PC connection)

• 1x Power Cord

• User Manual
