Description

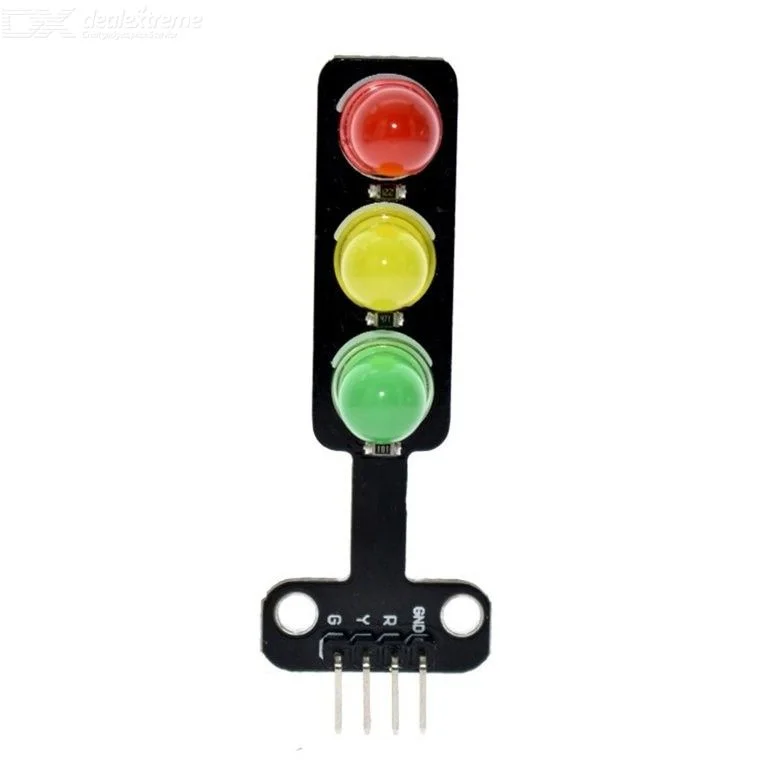

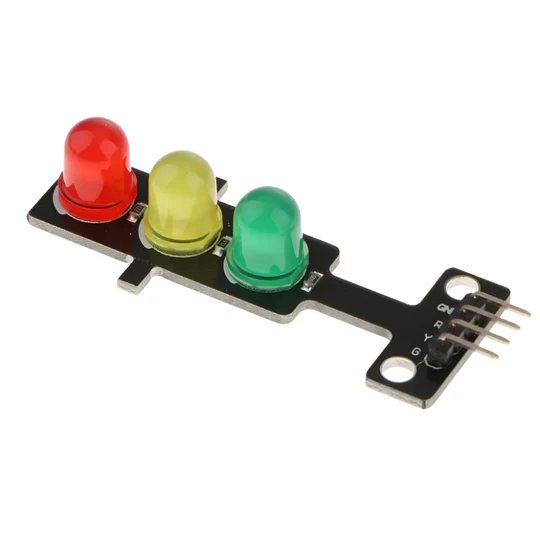

the LED Traffic Lights Signal Module / Digital Signal Output Traffic Light Module is another great interesting DIY accessory by projectbasegh This is a mini-traffic light display module, with high brightness, very suitable for the production of a traffic light system model.
Can be connected to the motherboard’s PWM pin to control the brightness of the light.
Technical Details
- Item Type: LED Module
- Voltage Rating: 5V
- Color: Red, Yellow, Green
- LED Size: 10×7mm
- PCB Size: 60×20mm
Features
- Long life
- Operating Temperature: -30℃ to +85℃
- Storage Temperature: -40℃ to +100℃
- Luminous Intensity: 20mcd
- Reverse Voltage: 5V
- Forward Voltage (VF): 1.8V to 2.4V
- Forward Current (IF): 30mA
- Energy efficiency
- High brightness and intensity
- Low radiated heat
- Reliability
- 5mm Round Standard Directivity
Applications :
- Traffic Light Simulation: Ideal for project demonstrations
- Electronics Learning: Useful for prototyping and experiments
- Smart Traffic Control: Develop intelligent traffic systems
- Embedded System Experiments: Integrate with microcontrollers
- Arduino Projects: Compatible with Arduino and other boards
- STEM Education: Great for students and learning purposes
- IoT-Based Monitoring: Use in smart traffic applications
Forward Voltage of LED According to its color
- Red: 1.63 ~ 2.03V
- Blue: 2.48 ~ 3.7V
- Green: 1.9 ~ 4.0V
- Yellow: 2.10 ~ 2.18V
- Orange : 2.03 ~ 2.10V
- White: 3.2 ~ 3.6V
Physical Attributes
- PCB Size: 60×20mm
- Weight (gm) : 5
Package Includes
- 1 x LED Traffic Lights Signal Module / Digital Signal Output Traffic Light Module
