Description

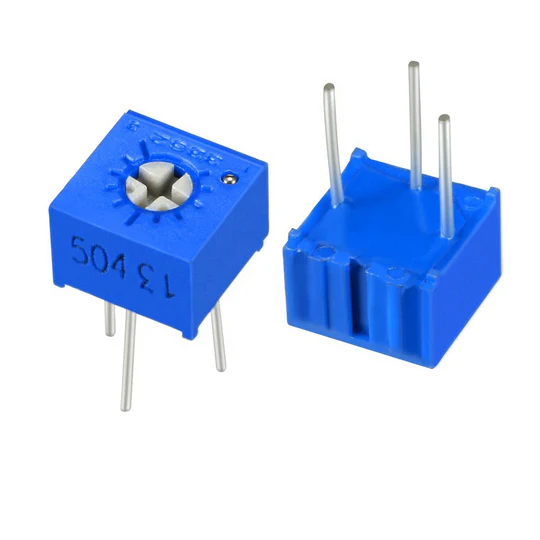

3362P: This likely refers to the model number or series of the potentiometer. It helps identify the specific type or variant within the manufacturer’s product line.
Adjustable Precision Potentiometer: This indicates that the potentiometer is adjustable, meaning you can change its resistance value manually or electronically. The term “precision” suggests that it has a high level of accuracy and stability in maintaining its resistance value.
504: This could refer to the potentiometer’s resistance value. In this case, “504” might represent 500 kilohms (500K), which means the potentiometer has a total resistance of 500,000 ohms.
500K: As mentioned earlier, this likely indicates the potentiometer’s resistance value, specifically 500 kilohms.
Application:
It’s commonly used in electronic circuits for tasks like volume control, sensor calibration, or voltage division.
Technical Details
- Series: 3362
- Resistance: 500K Ohm
- Power Rating: 500mW (1/2 W)
- Voltage Rating: 300V
- Tolerance: 10%
- Product Type: Trimmer Resistors
- Product: Single Turn
- Number of Turns: 1
- Adjustment: Top Cross
- Temperature Coefficient: 100 PPM/°C
- Orientation: Vertical Adjustment
- Type: 0.25 in Square Trimming Potentiometer
- Operating Temperature: -55°C ~ +125°C
- Element Type: Cermet
- Termination Style: PC Pin
- Mounting Style: PCB Mount
Physical Attribute
- Length *Width* Height (in mm) : 7 * 6.8 * 11
- Weight (gm) : 1
Pinout Diagram
Pin Configuration
- CCW: Connected to one end of the resistive track
- Wiper: By moving this terminal we get variable voltage
- CW: Connected to another end of the resistive track
Applications
- Voltage and Current Control Circuits
- Used as volume control knobs in radios
- Tuning or controlling circuits
- Analog input control knobs
