₵18.00
The performance of the ultrasonic sensor distance measuring module is stable and measures the distance accurately. The module is with High precision, blind spots (3cm) super close. This module provides a full set of ranging processes.

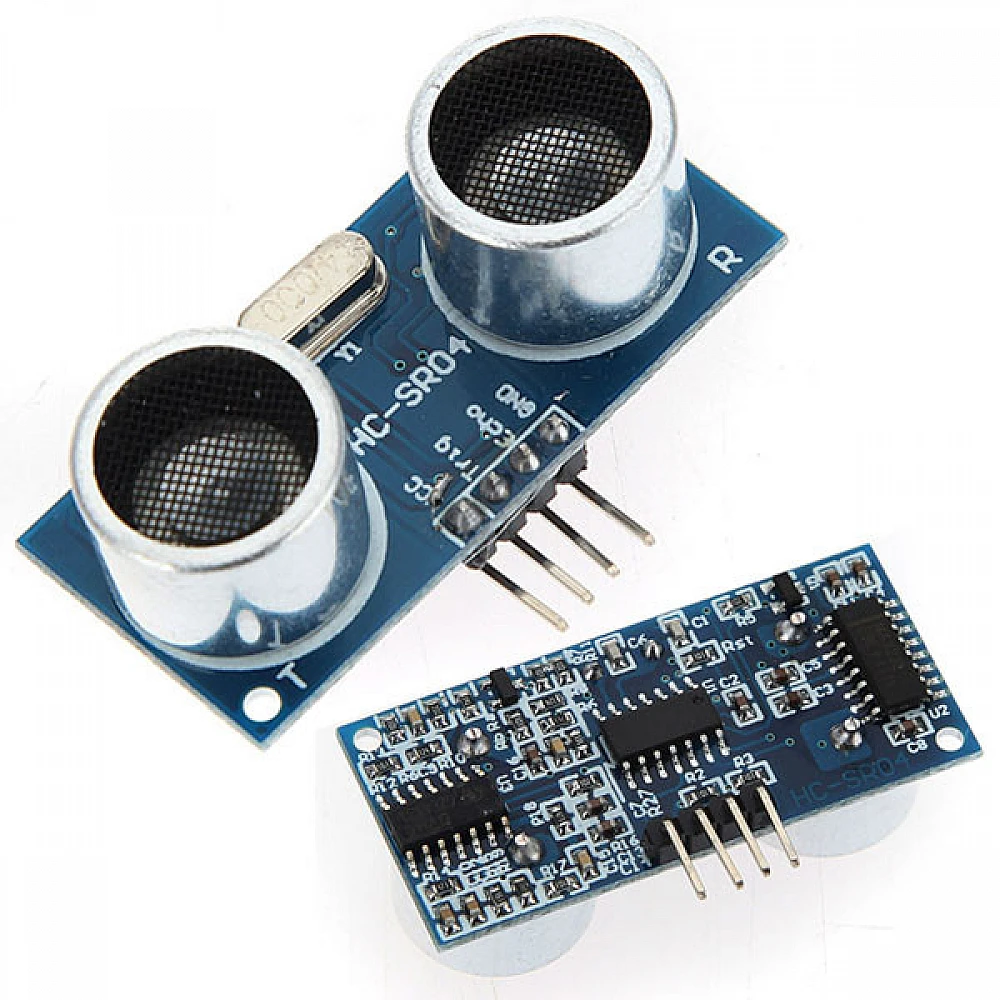

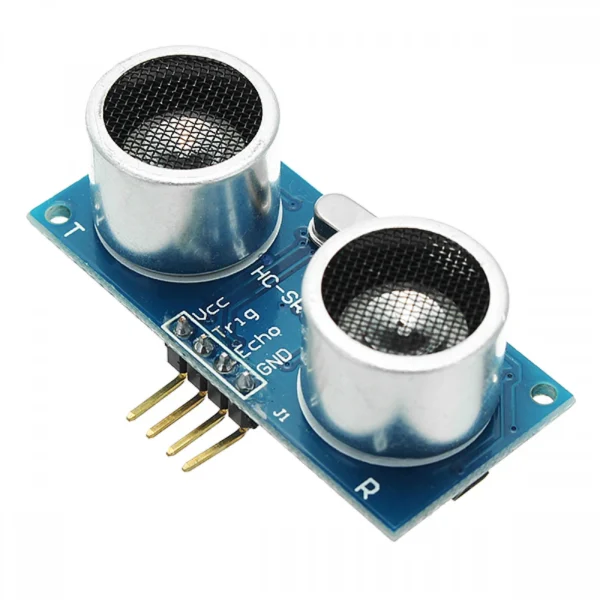

The module has two eyes like projects in the front which form the Ultrasonic transmitter and Receiver. The HC-SR04 ultrasonic sensor uses sonar to determine the distance to an object like bats or dolphins do.
The mounting bracket is only compatible with the HC-SR04 ultrasonic ranging module, and not with other sensor modules.
This contains an HC-SR04 Ultrasonic range finder and a mounting bracket for the fast and easy assembly of your project. The Ultrasonic Sensor Mounting Bracket used is made up of Acrylic.
2 in stock
Features:
| Technical | |
| Model | HC-SR04 |
| Frequency | 40 kHz |
| Inner diameter | 1.6cm |
| Mounting Hole size | 0.38 cm (Dia) |
| Operating Voltage | 5V |
| PCB Size ( L x W ) | 4.5 x 2 cm |
| Range | 2cm-450cm |
| Sensing Angle | Not more than 15 degrees |
| Static Current | Less than 2mA |
| Thickness | 0.28 –0.31 cm |
| Material | Acrylic |
